Horizontal industrial pumps

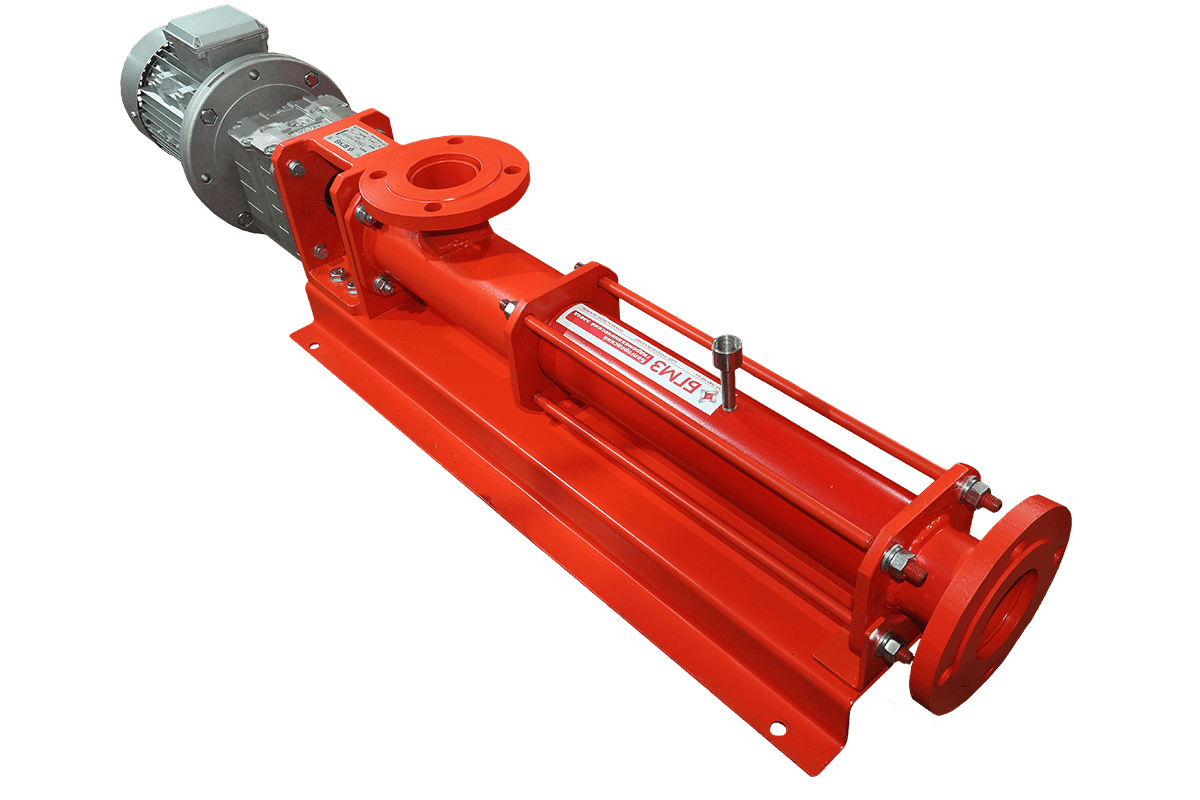

SP-H-38-01.S.04 for flotation sludge
Specifications
Capacity
5 m³/hour
Pressure
6 bar
Wetted parts material
steel 20
Rotor Material
1.4571
Stator Material
NBR
Shaft seal type
serviced oil seal
Inlet
the flange 65
Outlet
the flange 65
Reduction gear
2,2 kW; 1410 rpm
Additional options
mounting for the dry running protection system
