Horizontal industrial pumps

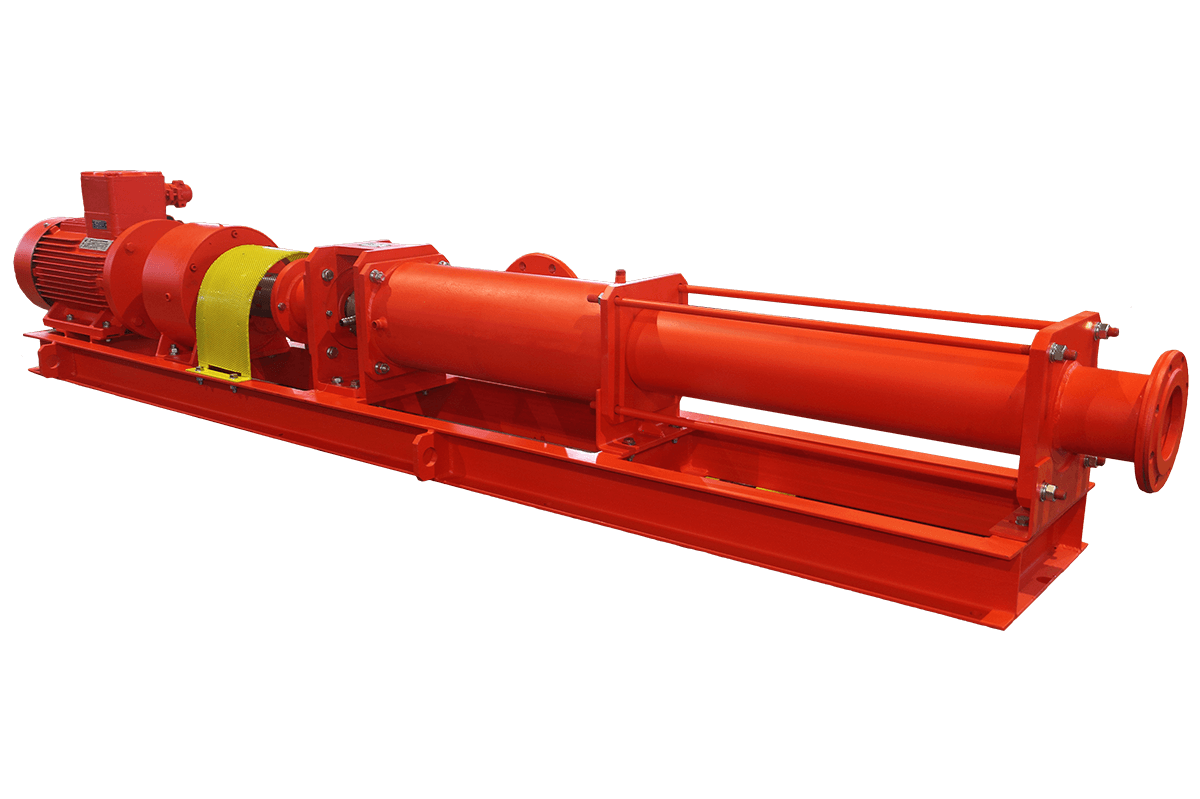

SP-H-76-01.S.02 (Ex) for SVN (extra viscous oil)
Specifications
Capacity
70 m³/hour
Pressure
6 bar
Wetted parts material
steel 20
Rotor Material
1.4571
Stator Material
HNBR
Shaft seal type
BSM7N-80 double end face
Inlet
the flange 150
Outlet
the flange 150
Electric motor
18,5 kW; 1500 rpm
Additional options
heating of the working chamber (flow-through)
